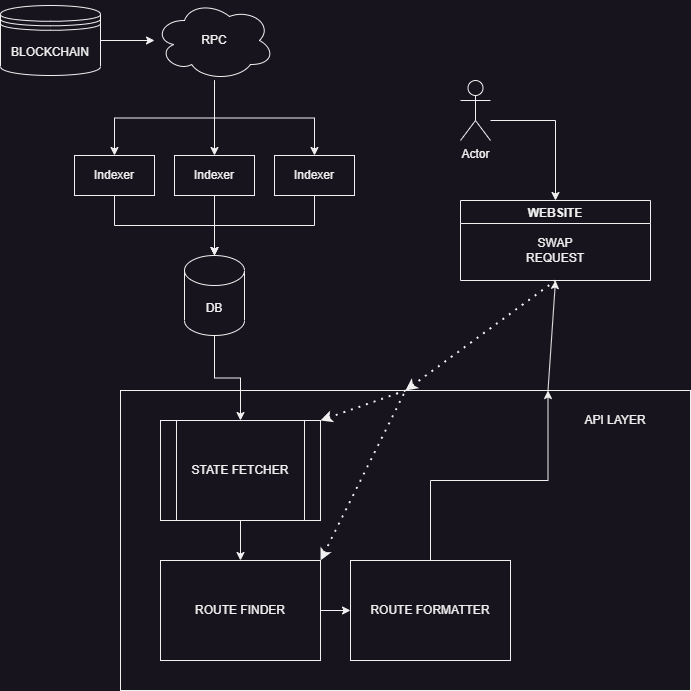

The architecture is modular and scalable, allowing each component to function independently and scale according to demand.

Components of the Architecture

Data Ingestion Layer

Function:

Indexes events from Remote Procedure Calls (RPCs) across multiple smart contracts.

Interaction:

Acts as the initial entry point for data. It captures and feeds raw data into the system for further processing, ensuring that all relevant events on the blockchain are collected and stored.

Data Transformation Layer

Function:

Extracts and processes relevant information from the ingested events to make it useful for the platform's operations.

Interaction:

Once the data is ingested, this layer processes and cleans it, storing the transformed data in a database. This makes the data ready for analysis and retrieval by other layers of the system.

State Initialization

Function:

Retrieves and organizes critical information related to user swap requests, such as token pairs, liquidity, and values.

Interaction:

Prepares the system to handle user-specific requests by pulling necessary data into the state, ensuring that each swap request is processed with up-to-date information.

Route Finding Layer

Function:

Utilizes advanced algorithms to determine the most efficient swap route from one token (tokenA) to another (tokenB) based on user inputs.

Interaction:

Communicates with both the state initialization and data layers to ensure optimal route selection for swaps, enhancing the user's trading experience by minimizing costs and maximizing returns.

API Layer

Function:

Serves as the endpoint for user interaction, handling requests for data and executing commands.

Interaction:

Acts as the intermediary between the user and the backend system, forwarding requests and responses between various layers. This layer ensures that user queries are processed efficiently and securely.

Front-End Layer

Function:

Provides a user interface (UI) that presents data and options to the end-user, enabling them to interact with the platform for swapping tokens, viewing data, and more.

Interaction:

Interfaces with the API layer to display real-time information and receive user inputs. It facilitates an intuitive and responsive user experience by allowing direct interaction with the underlying systems.

Scalability Considerations

The DiamondSwap platform is designed with scalability in mind. Each layer of the architecture is loosely coupled, which means that they can operate independently and be scaled based on specific needs. This modularity allows the platform to handle increased load and traffic without compromising performance or reliability.

Benefits of This Design:

Flexibility: Components can be updated, replaced, or scaled individually without affecting the entire system.
Efficiency: Resources can be allocated dynamically to components that require more capacity, optimizing performance.
Reliability: The decoupled nature reduces the risk of a single point of failure, enhancing overall system stability.
